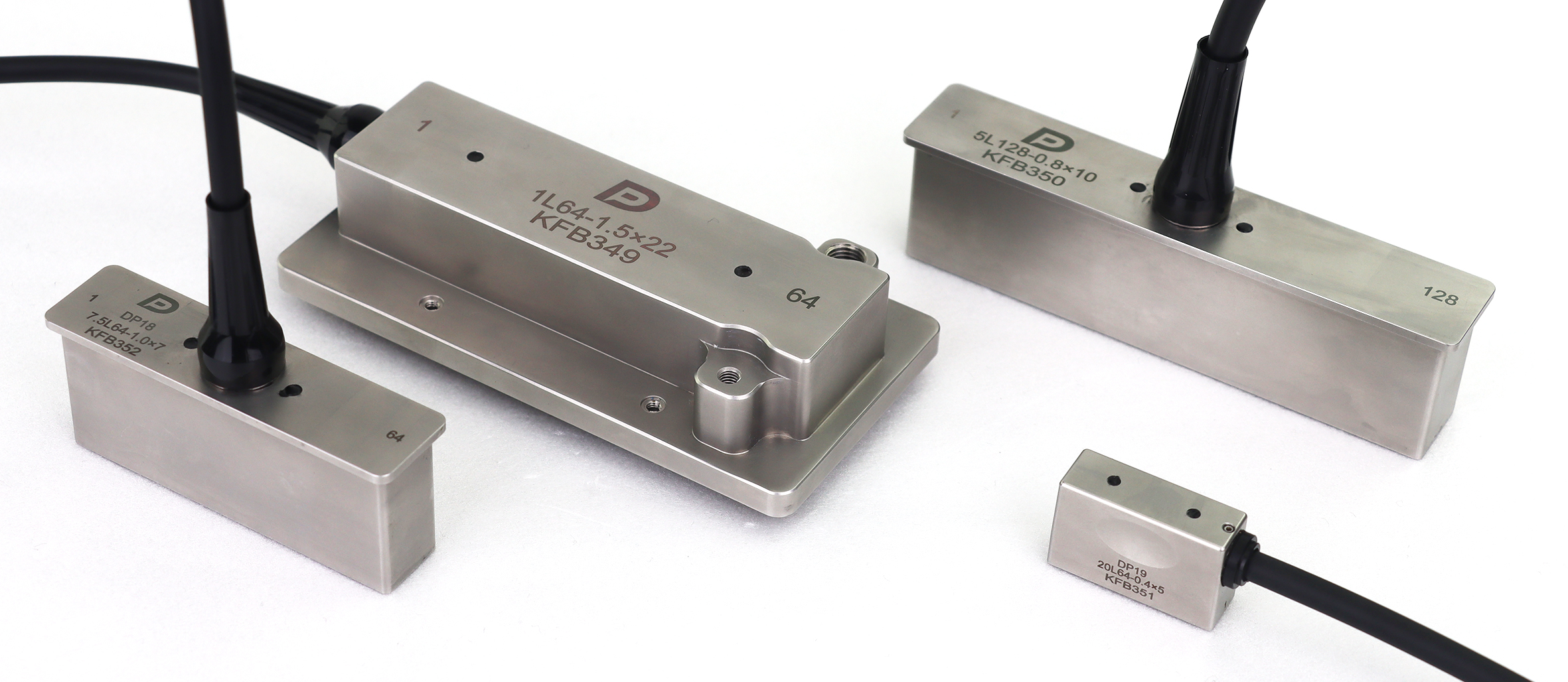

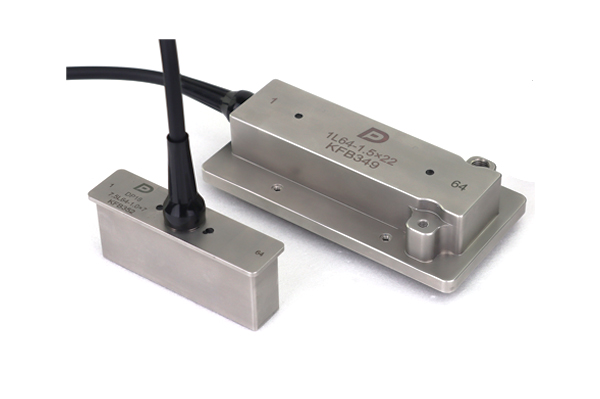

Linear Phased Array Immersion Probes

Immersion probe to be used with an immersion tank where the workpiece is submerged, typically configured as longitudinal wave probes or shear with wedge.

$ 0.00 AUD
Request Call Back

Variant out of stock, you may request a backorder quote. Please list the product specifications in the text field.

Request Quote
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Categories:
Phased Array
NDT
Overview
Specifications
Test Methods
Articles
Test Standards
Downloads

Applications

  • Power: Pressure Vessels, Pipelines
  • Petroleum: Pipelines, Tanks
  • Aviation / Aerospace: Composites, Delamination & Abhesion, Welding, Landing Gears Inspection
  • Transportation: Composites Delamination & Abhesion, Planks
  • Conventional: Large Area Scanning; Planks, Sticks, Pipelines Thickness Measurement

Features

  • Electronic Controls Beam Angle, Focusing, and Scanning Step Size
  • Less Settings and Scanning Time
  • Electronic Focusing – Increased Sensitivities & Signal-to-noise Ratios
  • Reduction or Exemption of Mechanical or Manual Controls
  • Wedge is replaceable when Immersion Method Applied

‍

‍

‍

Frequency Elements Pitch Active Aperture Elevation Casing Dimensions Case Type
Length Width Height
MHz mm mm mm mm mm mm
Model: 20L64-0.4*5
7.5 64 1 64 7 75 19 30 DP18
Model: 20L64-0.4*5
20 64 0.4 25.6 5 32 11 20 DP19
Model: 5L128-0.8*10
5 128 0.8 102.4 10 114 22 30 DP20

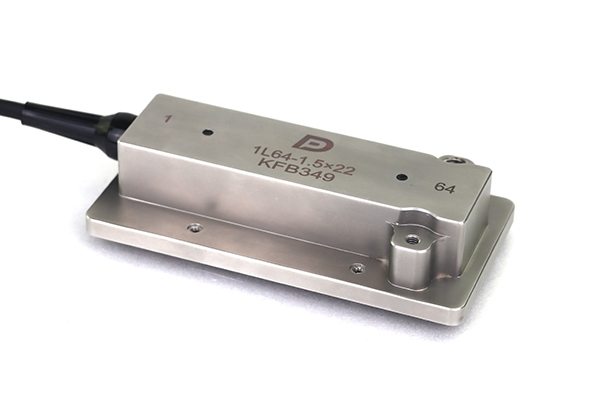

Model: 1L64-1.5*22
1 64 1.5 96 22 116 58 30 DP21
