Linear Phased Array Series

$ 0.00 AUD

Doppler's conventional linear array probes, a standard series for phased array instrument use for all ultrasonic applications.

Request Call Back

Variant out of stock, you may request a backorder quote. Please list the product specifications in the text field.

Request Quote
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Categories:

Linear Phased Array Small Series

Applications
  • Power: conventional welding inspection, pressure vessels, oil refineries, etc
  • Aviation / Aerospace: Welding, Landing Gears Inspection
  • Automotive: Engine Parts, Frames, Axles, Brake Discs.
  • Conventional: Welding, Forgings, Castings, Pipes, Bridges & Construction Steels
Features
  • Tiny outlines
  • Cable top or side leads
  • Electronic Controls Beam Angle, Focusing, and Scanning Step Size
  • Fixed Angle & Focused Probes, Without the Need of Multiple Detections
  • Can Detect Conventional Undetectable Areas
  • Replaceable Two Types of Wedges - Flatted & Curved Surfaces

Linear Phased Array Medium Series

Applications
  • Power: Conventional Welding Inspection, Pressure Vessels, Oil Refineries, etc
  • Aviation / Aerospace: Welding, Landing Gears Inspection
  • Automotive: Engine Parts, Frames, Axles, Brake Discs
  • Conventional: Welding, Forgings, Castings, Pipes,
  • Bridges & Construction Steels
Features
  • Cable side leads
  • Electronic Controls Beam Angle, Focusing, and Scanning Step Size
  • Fixed Angle & Focused Probes, Without the Need of Multiple Detections
  • Can Detect Conventional Undetectable Areas
  • Replaceable Two Types of Wedges - Flatted & Curved Surfaces

Linear Phased Array Large Series

Applications
  • Power: Pressure Vessels, Pipelines
  • Petroleum: Pipelines, Tanks
  • Aviation / Aerospace: Composites Delamination & Adhesion, Welding, Landing Gears Inspection
  • Transportation: Composites Delamination & Adhesion, Planks
  • Conventional: Large Area Scanning, Planks, Sticks, Pipelines
  • Thickness Measurement
Features
  • Electronic Controls Beam Angle, Focusing, and Scanning Step Size
  • Less Settings and Scanning Time
  • Electronic Focusing – Increased Sensitivities & Signal-to-noise Ratios
  • Reduction or Exemption of Mechanical or Manual Controls
  • Wedge is replaceable when Immersion method applied

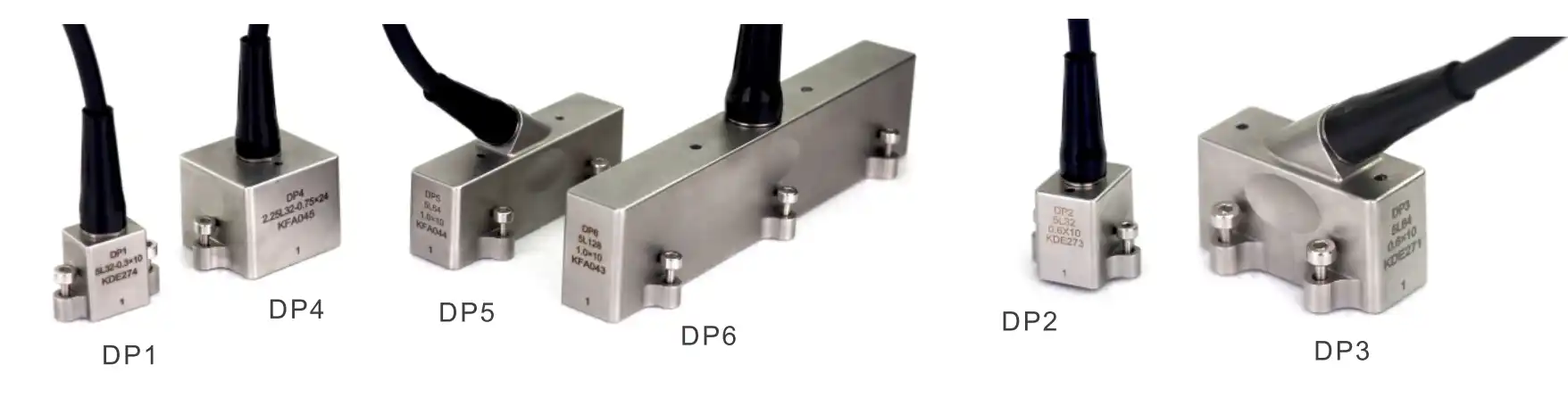

Model Frequency Elements Pitch (mm) Active Aperature (mm) Elevation (mm) Dimensions Case
5L32-0.3*10 5 32 0.3 9.6 10 13.4 x 28.5 x 20 mm DP1
5L16-0.6*10 5 16 0.6 9.6 10 13.4 x 28.5 x 20 mm DP1
5L32-0.6*10 5 32 0.6 19.2 10 23 x 28.5 x 23 mm DP2
5L64-0.6*10 5 64 0.6 38.4 10 42.5 x 28.5 x 23 mm DP3
2.25L32-0.75*24 2.25 32 0.75 24 24 29.5 x 30.5 x 25 mm DP4
5L64-1.0*10 5 64 1 64 10 70 x 28.5 x 23 mm DP5
5L128-1.0*10 5 128 1 128 10 135 x 29.5 x 30 mm DP6
5L32-1.0*10 5 32 1 32 10 36 x 28.5 x 23 mm DP28
10L16-0.31*5 10 16 0.31 4.96 5 8 x 8 x 18 mm DP30
5L32-0.8*10 5 32 0.8 25.6 10 29.5 x 28.5 x 23 mm DP31
