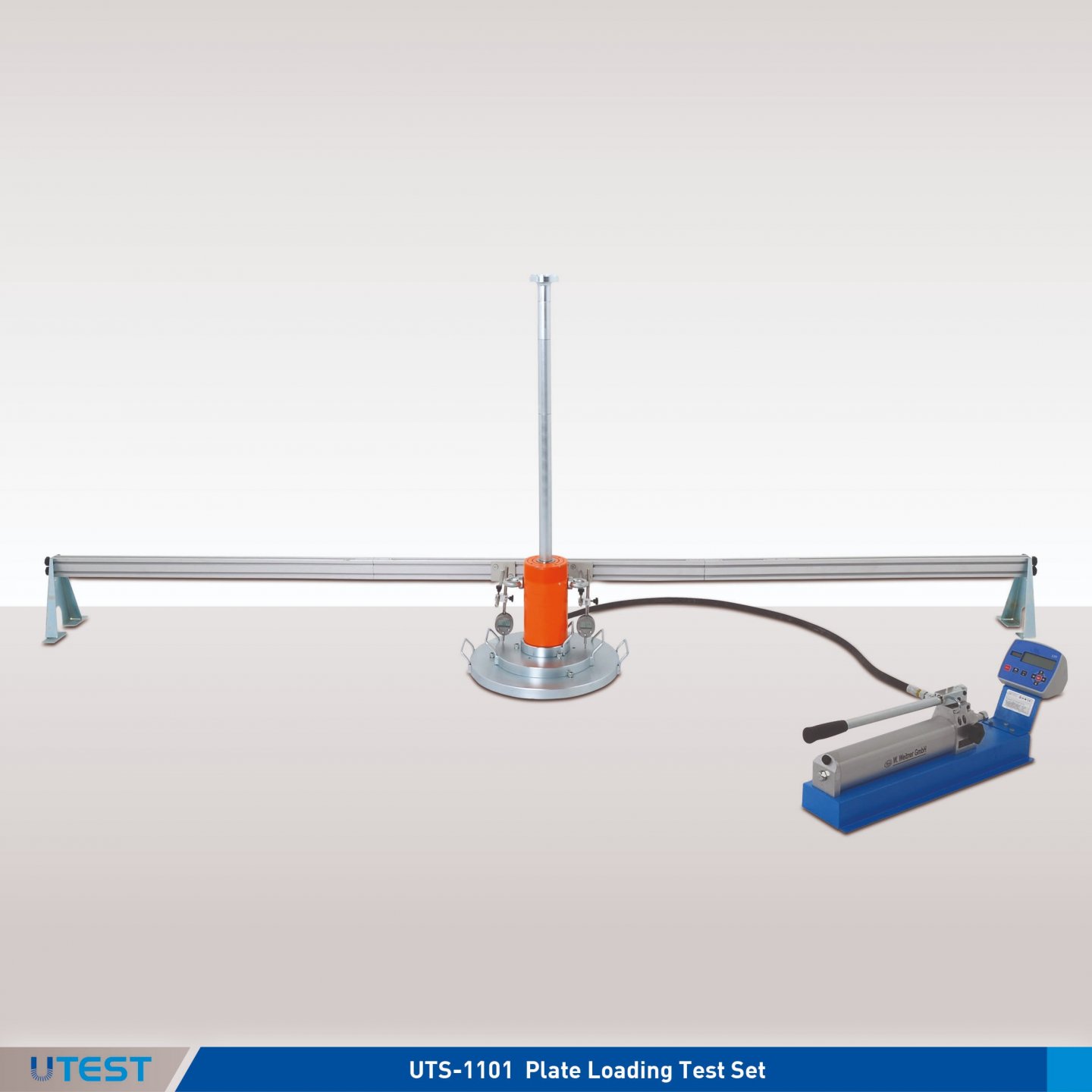

Plate load testing devices are used to determine the load on ground to introduced settlement, a measure of ground's bearing capacity.
This test method has been designed to measure the bearing capacity of a soil under field loading conditions for a specific loading plate and depth of embedment. It is also used for load tests of soil and flexible pavement components for use in evaluation and design of airport and highway pavements.
Data logging versions of the test equipment are available with a pressure transducer, 4 channel static unilogger data acquisition unit, 2.4 m long datum bar, 3 pcs. 25 mm x 0.001 mm linear potentiometric displacement transducers and their supports, converter DC 12 V to DC 24 V and UTEST software.
All test sets supplied complete with 1.5 m long flexible hose.
The 1600 ml Balloon Density Apparatus is used for the on-site determination of the density of well bonded soil.
UTS-0990A comprises of a graduated cylinder of 1596 ml capacity housed inside an aluminium guard, a reversible rubber aspirator pump, a density plate 9 inches square, and 12 rubber balloons. The principle of operation is comparable to the sand replacement but the hole is filled by a rubber balloon into which water is pumped. The graduation of the cylinder is an indicator of the amount of water in the balloon.
