UT Thickness Probe

UT Thickness Probes are used with an Ultrasonic Thickness Gauge to measure the wall thickness of materials and to locate regions of section loss due to corrosion.

$ 0.00 AUD

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

Categories:

Ultrasonic

NDT

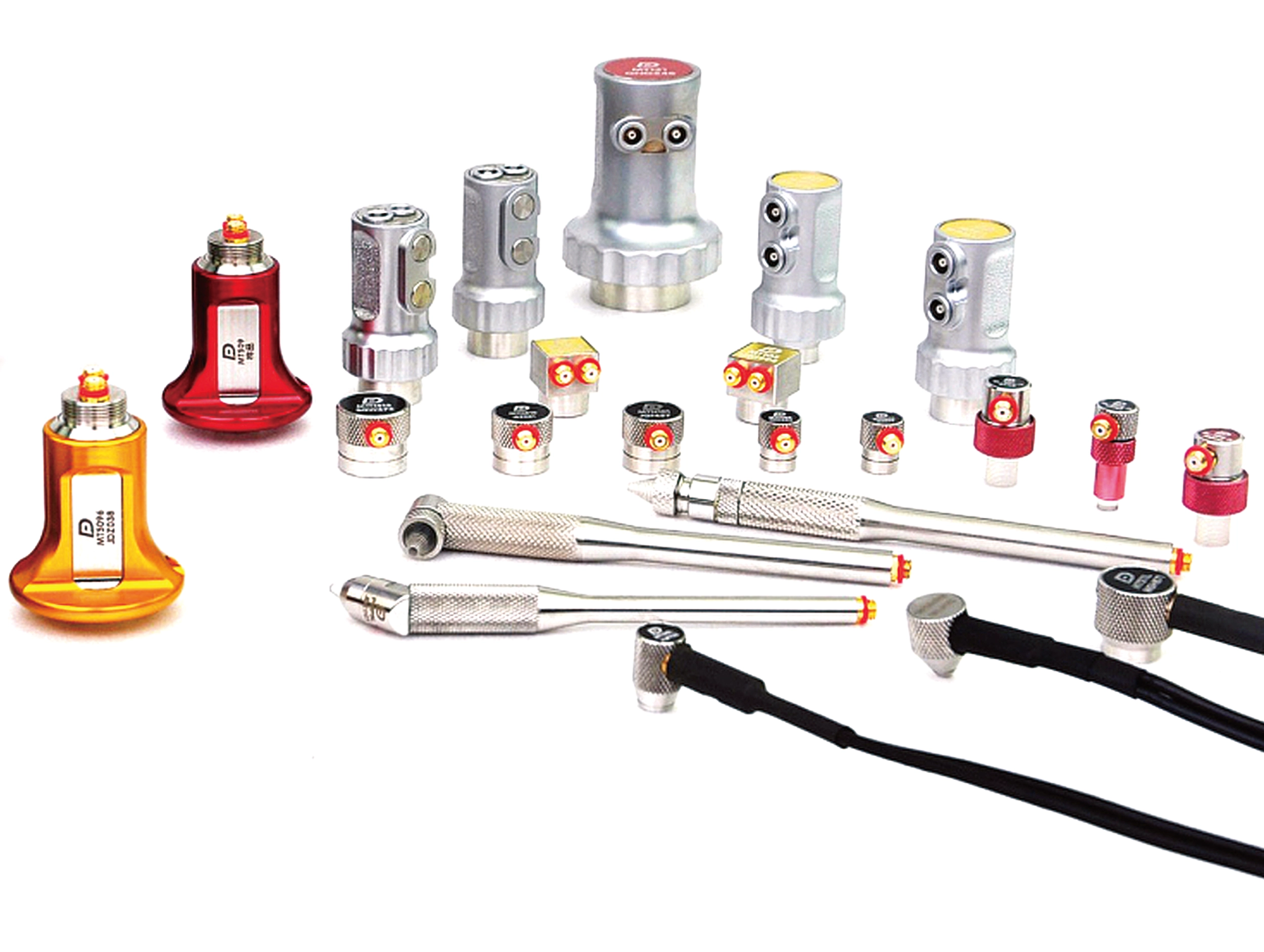

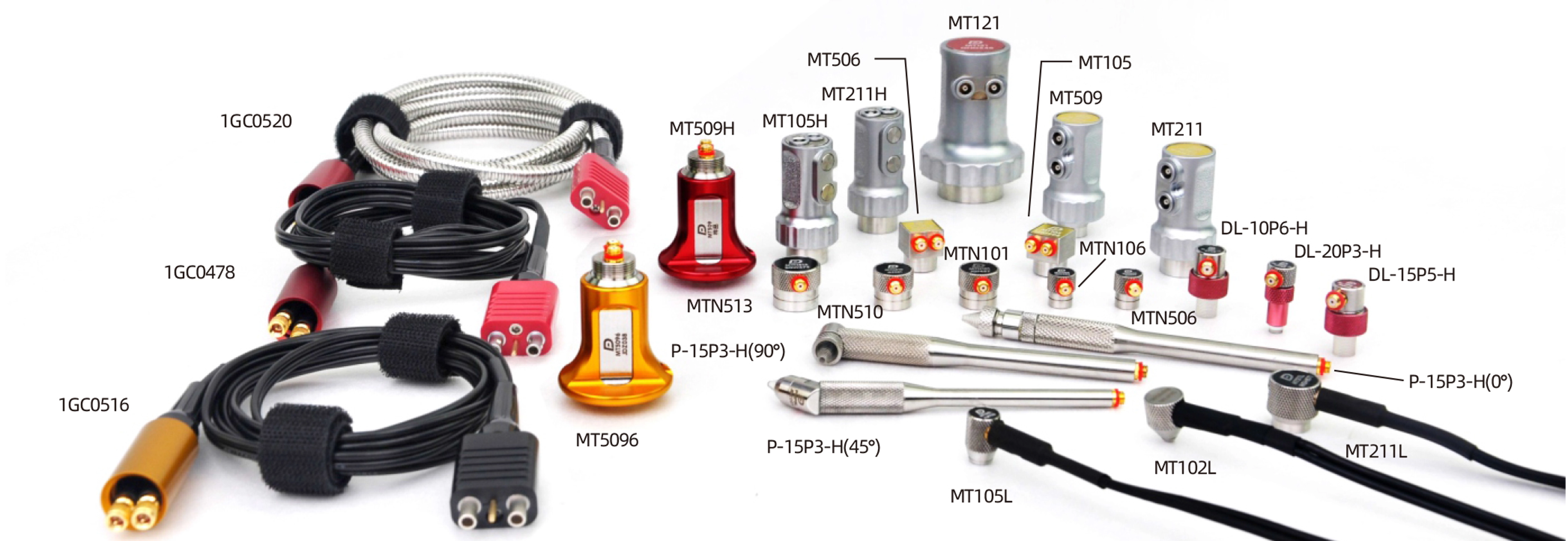

Ultrasonic Thickness Probes range.

Twin Crystal Probes

Model	Application	Freq	Contact OD	Range	Operation Temp	Line Out	Connector	Cable	Accur
		MHz	mm	mm	ºC			(Option)	(Option)
MT509	Standard Normal Through Coating	5	11.5	1.5-225 (Through Coating 3-100)	-20 +60	Side	Lemo-00	1GC0422	1
MT5096	Standard Normal	5	11.5	1.5-50	-20 +60	Top	Microdot	1GC0515 1GC0516 1GC0520	1
MT211	Standard Normal	2	16.5	2-225	-20 +60	Side	Lemo-00	1GC0422	1/5
MT121	Standard Normal	1	28.5	8-80	-20 +60	Side	Lemo-00	1GC0422	1/5
MT105H*	Standard High Temp	10	7.5	1.2-30	0 +500	Top	Lemo-00	1GC0422	1/5
MT509H*	Standard High Temp	5	11.5	2-200	0 +500	Top	Microdot	1GC0478 1GC0514 1GC0520	1
MT211H*	Standard High Temp	2	16.5	3-200	0 +500	Top	Lemo-00	1GC0422	1/5
MT506	Fingertip Normal Through Coating	5	7.5	1.2-225 (Through Coating 5~20)	-20 +60	Side	Microdot	1GC0424	1
MT506L	Fingertip Normal Through Coating	5	9.5	1.2-225 (Through Coating 5~20)	-20 +60	Side	Lemo-00	With Cable 1.2m	1
MT102L	Fingertip Normal	10	3	1-8	-20 +60	Side	Lemo-00	With Cable 1.5m	1/5
MT105	Fingertip Normal	10	7.5	0.8-50	-20 +60	Side	Microdot	1GC0424	1/5
MT105L	Fingertip Normal	10	7.2	0.8-50	-20 +60	Side	Lemo-00	With Cable 1.5m	1/5
MT211L	Fingertip Normal	2	15.5	2-225	-20 +60	Side	Lemo-00	With Cable 1.5m	1/5

Single Crystal Probes

Standard Cable - 1GC0423

Accur - 3

Model	Application	Freq	Contact OD	Range	Operation Temp	Line Out	Connector
		MHz	mm	mm	ºC
DL-10P6-H	Delayline Normal	10	7.9	0.5-14.5	-20 +60	Side	Microdot
DL-15P5-H	Delayline Normal	15	7.9	0.25-14.5	-20 +60	Side	Microdot
DL-20P3-H	Delayline Normal	20	4.8	0.15-6	-20 +60	Side	Microdot
P-15P3-H(0°)	Pen Type Normal	15	2	0.5-10	-20 +60	Top	Microdot
P-15P3-H(45°)	Pen Type Normal	15	2	0.5-10	-20 +60	45º Side	Microdot
P-15P3-H(90°)	Pen Type Normal	15	2	0.5-10	-20 +60	Side	Microdot
MTN506	Standard Normal	5	9	3-50	-20 +60	Side	Microdot
MTN510	Standard Normal	5	14	3-75	-20 +60	Side	Microdot
MTN513	Standard Normal	5	17	3-250	-20 +60	Side	Microdot
MTN106	Standard Normal	10	9	3-25	-20 +60	Side	Microdot
MTN101	Standard Normal	10	14	3-50	-20 +60	Side	Microdot
