PosiTest LPD

Low voltage Pinhole Detector for Metal and Concrete Substrates. Detects holidays, pinholes and other discontinuities in coatings on metal and concrete substrates.

$ 0.00 AUD

Variant out of stock, you may request a backorder quote. Please list the product specifications in the text field.

Request Quote
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

GS9000 Multichannel GPR for 3D Utility Mapping and Structural Assessment

Overview | GX1 vs GX2 | SUE & Utilities | Structures & Pavements | Software & Outputs | Case Studies | Specifications | Support

Discuss Your Application

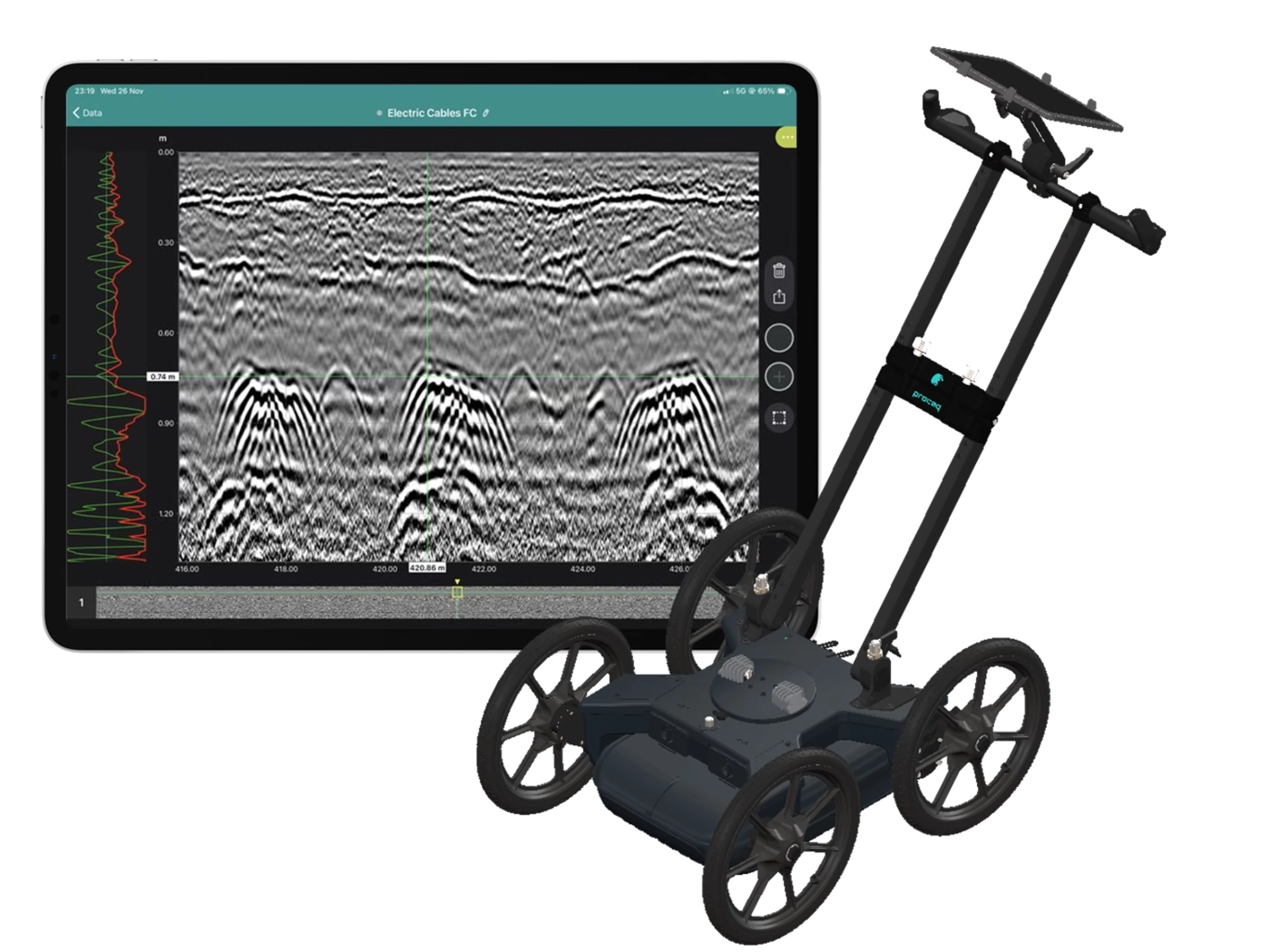

Collect high-density, georeferenced GPR data across wide areas and view the subsurface in 3D as you scan. Choose the GX2 array for SUE and utility mapping, or the GX1 array for structural, bridge and pavement investigations.

Book a GS9000 Demonstration

Best suited to:

  • Subsurface utility engineering
  • Utility locating and mapping
  • Civil and survey contractors
  • Road and corridor investigations
  • Void and subsurface anomaly surveys

Best suited to:

  • Bridge-deck investigations
  • Concrete cover and moisture mapping
  • Pavement and asphalt-layer assessment
  • Reinforcement mapping
  • Structural deterioration surveys

Recommended array: GX2

Recommended array: GX1

Why use the GS9000 instead of a conventional single-channel GPR?

Cover more ground

Collect multiple parallel profiles in one pass instead of uilding a grid line by line.

See results during acquisition

View georeferenced radargrams and time-slice information in the field rather than waiting until the data is returned to the office.

Produce repeatable mapped data

Combine wheel-positioned GPR data with GNSS, project coordinates and survey linework.

Use one platform for two very different applications

Exchange GX1 and GX2 arrays without purchasing two complete cart platforms.

High-density 3D GPR mapping for SUE and utility investigations

The GX2 transforms the GS9000 into a high-density subsurface utility mapping system. Its 11-channel, low-frequency GPR array captures an 83 cm-wide swath in each pass, helping operators detect and map buried pipes, ducts, cables, voids and other subsurface features. Live georeferenced data lets SUE teams review coverage on site and produce accurate CAD, GIS and project-coordinate deliverables.

  • Utility corridor mapping
  • Detection of pipes, ducts and cables
  • Mapping non-conductive services that may not respond to electromagnetic locating
  • Congested service investigations
  • Road-crossing and easement surveys
  • Potential void and cavity investigation
  • Pre-excavation and design-stage surveys
  • Utility mapping to project or local coordinates

The SUE field workflow

1. Plan the survey

Load satellite imagery, CAD information, project coordinates or survey control.

2. Collect dense multichannel data

Survey an approximately 0.82 m-wide swath with 11 channels in each pass.

3. Review data live

Examine radargrams, georeferenced time slices and marked features while still on site.

4. Interpret and digitise

Add points, linework, tags, photographs and field observations.

5. Process and deliver

Merge survey areas, apply processing and export mapped information for the customer’s CAD, GIS or reporting workflow.

SUE Outputs and Deliverables

Voltage Setting 9V ± 5% 67.5V ± 5% 67.5V ± 5% 90V ± 5%
Sensitivity 90k ± 3% 80k ± 3% 90k ± 3% 400k ± 3%
Thickness Range 0 – 500 μm (0 – 20 mils)
Temperature Range -10 – 50° C (14 – 122° F)
Battery Life > 150 hrs (depending on battery type)
IP Rating meets or exceeds IP65
Size 27 x 6 x 5.5 cm (10.6" x 2.3" x 2.1") without wand
Weight 180 g (6.4 oz.) without batteries

Conforms to: ISO 14654/29601/8289-A, ASTM G62/G6/D5162, BS7793-2, NACE TM0384, SP0188, AS3894.2, JIS K 6766

No Items Found
No items found.
AS 3894.2
Site testing of protective coatings Non-conductive coatings - Continuity testing - Wet sponge method
Other Products...
No items found.

DeFelsko's PosiTest LPD is the smartest and most ergonomic pinhole detector available, it weighs less than other products and offer unique features that ensure correct operation and reliable performance. These features include GroundSense™ to ensure the electronic circuit is correctly connected and calibrated voltage outputs.

A pinhole detector is an electronic test system for detecting discontinuities in a coating system including pinholes, cracks and thin spots. Other names include porosity detector, continuity tester, sponge tester and holiday detector.

After a protective coating has been applied, it is important to ensure there are no defects or discontinuities present that expose the substrate beneath. Small areas of thin or missing coating, called 'pinholes' or 'holidays', can become foci for corrosion and drastically reduce the life of a protective coating system. They can be invisible to the naked eye.

Porosity detectors are often used in applications where corrosion is difficult to monitor, or in aggressive service environments where performance of the protective coating is critical.

There are two types of pinhole detectors, low voltage (wet sponge) and high voltage (spark tester). Low voltage detectors, like the PosiTest LPD, are typically used on coating systems less than 500 µm thick.

Features

  • Easy-to-use interface with bright, multi-function LEDs
  • Audibly and visibly alerts when flaws are detected
  • Weatherproof, dustproof and shockproof, meets or exceeds IP65
  • Automatic self-test verifies voltage calibration
  • Regulated voltage outputs will not drop under load
  • GroundSenseTM visibly reassures the user that the instrument is properly grounded
  • Common threads and connectors allow for maximum flexibility
  • Headphone jack with included earbud for noisy environments

Theory

A low-voltage pinhole test is performed by moving a moistened, electrified sponge over a non-conductive coating applied to a conductive substrate. The instrument is 'grounded' or 'earthed' to the conductive substrate, typically by clamping onto an uncoated area.

When the coating is continuous and no defects are present, electronic current is unable to pass from the sponge to the substrate through the non-conductive coating. But when the electrified sponge encounters a flaw in the coating, electricity is able to flow into the substrate and travel back to the instrument through the ground wire, completing the circuit and setting off the audible and visible alarms.

Testing over Concrete

Concrete is still slightly conductive, and can carry enough current to allow low-voltage pinhole detectors to function, so concrete is considered a 'conductive' substrate for low voltage pinhole testing only. When measuring coating thickness with tools such as the Positector 6000, concrete is not considered a 'conductive' substrate, as it is much less conductive than metal.

The challenge when conducting low-voltage pinhole testing on concrete is to ensure the instrument is properly grounded. If there is exposed rebar or metal protruding from the concrete, this is the easiest solution. An alternative is to drive a metal rod (or piece of rebar) into the ground nearby the concrete to at least the depth of the slab, relying on the earth to conduct the electric current between the rod and the slab.

Test Kit and Accessories

The PosiTest LPD can be supplied as a Basic or Complete kit, the contents of which are listed below. There is also a range of spares and calibration tools available:

PosiTest LPD Basic

Includes everything needed for detecting pinholes using a rectangular sponge

Basic Kit comes complete with PosiTest LPD, base tube, 3 AAA batteries, rectangle sponge hardware, rectangle sponge, 4.5 m (15') ground wire, insulating collar, ear bud, wrist strap, carabiner, Long Form Certificate of Calibration traceable to NIST, instructions, hard shell case, two year warranty

PosiTest LPD Complete

Includes contents of the Basic Kit, plus adaptable sponge hardware and extension hardware in a hard-shell case.

Adaptable Sponge Hardware

  • Rectangle (Flat)
  • Roller
  • Circle jig for internal testing of pipes and conduits
  • Additional 20 cm x 20 cm (8"" x 8"") sheet sponge for custom usages
  • Wetting agent

Extension Hardware

  • Extension rods provide an additional 0.6 m (2') of reach
  • Universal adapters to extend existing paint rollers and poles
  • 12 m (40') ground wire
  • 4.5 m (15') hot wire
  • Magnetic grounding post

Available Accessories

  • Replacement Sponges [Rectangle, Roller or Sheet Sponge]
  • Extension Rod 0.3 m
  • Wetting Agent
  • Sometimes pinholes are so minuscule that water has difficulty reaching the conductive substrate underneath, especially on thicker coatings when the water must penetrate further into a pinhole to reach the substrate. In these instances, inspectors will use a surfactant (wetting agent) to lower the surface tension of the water, allowing the solution to better penetrate the pinhole.
  • PosiTest LPD Verifier

Why the GS9000 matters for SUE businesses

  • Increase area covered per field day
  • Reduce the number of manually positioned survey lines
  • Improve coverage in congested corridors
