Zehntner 1000 Series Glossmeters

The Zehntner 1000 series of glossmeters (Gloss Meters) are Proceq's largest and most flexible range, with units suitable for all testing geometries, computer connected measurements, measurement on site or in the workshop and for integration into production lines.

$ 0.00 AUD

Variant out of stock, you may request a backorder quote. Please list the product specifications in the text field.

Request Quote
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Categories:

GS9000 Multichannel GPR for 3D Utility Mapping and Structural Assessment

Overview | GX1 vs GX2 | SUE & Utilities | Structures & Pavements | Software & Outputs | Case Studies | Specifications | Support

Discuss Your Application

Collect high-density, georeferenced GPR data across wide areas and view the subsurface in 3D as you scan. Choose the GX2 array for SUE and utility mapping, or the GX1 array for structural, bridge and pavement investigations.

Book a GS9000 Demonstration

Best suited to:

  • Subsurface utility engineering
  • Utility locating and mapping
  • Civil and survey contractors
  • Road and corridor investigations
  • Void and subsurface anomaly surveys

Best suited to:

  • Bridge-deck investigations
  • Concrete cover and moisture mapping
  • Pavement and asphalt-layer assessment
  • Reinforcement mapping
  • Structural deterioration surveys

Recommended array: GX2

Recommended array: GX1

Why use the GS9000 instead of a conventional single-channel GPR?

Cover more ground

Collect multiple parallel profiles in one pass instead of uilding a grid line by line.

See results during acquisition

View georeferenced radargrams and time-slice information in the field rather than waiting until the data is returned to the office.

Produce repeatable mapped data

Combine wheel-positioned GPR data with GNSS, project coordinates and survey linework.

Use one platform for two very different applications

Exchange GX1 and GX2 arrays without purchasing two complete cart platforms.

High-density 3D GPR mapping for SUE and utility investigations

The GX2 transforms the GS9000 into a high-density subsurface utility mapping system. Its 11-channel, low-frequency GPR array captures an 83 cm-wide swath in each pass, helping operators detect and map buried pipes, ducts, cables, voids and other subsurface features. Live georeferenced data lets SUE teams review coverage on site and produce accurate CAD, GIS and project-coordinate deliverables.

  • Utility corridor mapping
  • Detection of pipes, ducts and cables
  • Mapping non-conductive services that may not respond to electromagnetic locating
  • Congested service investigations
  • Road-crossing and easement surveys
  • Potential void and cavity investigation
  • Pre-excavation and design-stage surveys
  • Utility mapping to project or local coordinates

The SUE field workflow

1. Plan the survey

Load satellite imagery, CAD information, project coordinates or survey control.

2. Collect dense multichannel data

Survey an approximately 0.82 m-wide swath with 11 channels in each pass.

3. Review data live

Examine radargrams, georeferenced time slices and marked features while still on site.

4. Interpret and digitise

Add points, linework, tags, photographs and field observations.

5. Process and deliver

Merge survey areas, apply processing and export mapped information for the customer’s CAD, GIS or reporting workflow.

SUE Outputs and Deliverables

  • Georeferenced time-slice maps
  • Radar profiles
  • Utility alignments and interpreted linework
  • Depth estimates
  • Survey trajectory
  • Points of interest
  • Field photographs and annotations
  • CAD, SHP and KML outputs
  • SEG-Y raw-data export
  • Project-coordinate and local-grid outputs
  • PDF or shareable project reports

View the images below to see these in action.

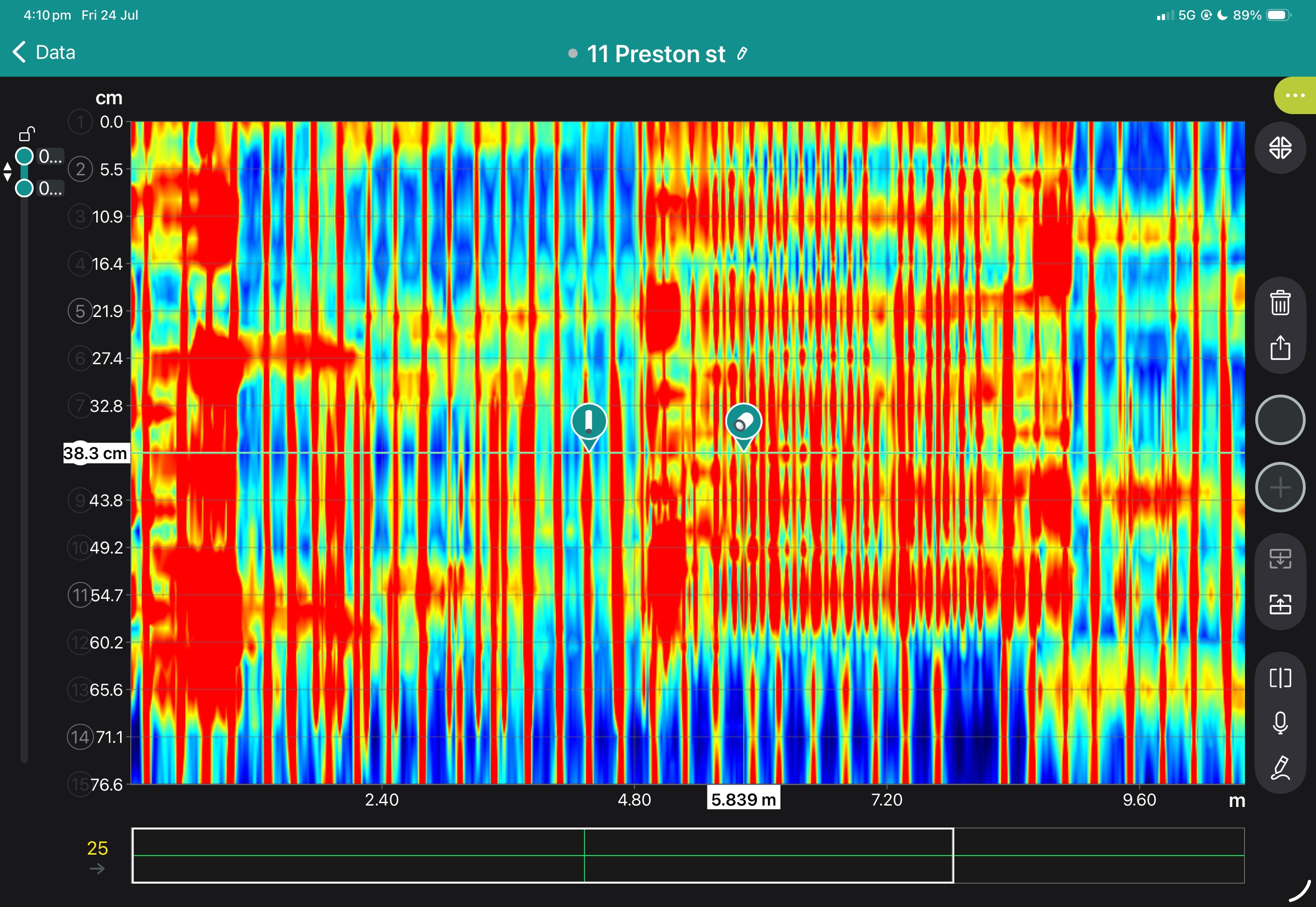

Superline and B Scan from App
Freepath and b-scan from app
Geolocated tag on freepath in app
Freepath shown In GPR Insights without Hilbert Transformation
Geotagged linework added to a found sewer
3D view with a cutout showing the sewer
3d Sewer line with GPR data removed

ZGM 1130

The Zehntner ZGM 1130 features a 2.4" touchscreen display, support measurement of gloss ranges from matt to high gloss up to 2'000 GU.

Overview

ZGM 1130 can be configured to support a range of testing geometries and measurements:

  • Coatings, plastics and related materials. High gloss (20°), Medium gloss (60°), Low gloss (85°)
  • Coatings, plastics and related materials. High gloss (20°), Medium gloss (60°)
  • Calculation of reflection haze H in accordance with ASTM D4039
  • Automatic Self Diagnosis
  • Stand-alone use with datalogging and PC connection available as a USB device or via software.
  • Works with GlossTools Software

Features

Touchscreen Display for all Gloss Ranges

The display is switchable for either a left-handed or right-handed user. Our precision milled monoblock optic ensures stable and reliable gloss measurements. This glossmeter's powerful stray light compensation allows exact measurements of transparent objects. It also features automatic calculation of "reflection haze H" with our dual and triple angle versions.

Direct Access to Measurement Data

The Zehntner ZGM 1130 offers direct access to measurement data in csv-format without requiring software thanks to USB device functionality. This model also features single, multiple and even continuous scan gloss measurements and features easy to use multi-language menu guidance.

ZGM 1120

Proceq’s Zehntner ZGM 1120 is a portable precision glossmeter with the smallest dimensions for measurement. Able to handle all surfaces from matt to high gloss, the top-selling ZGM 1120 can take measurements on small, curved and very hard to reach surfaces.

Overview
  • Dedicated sensor assembly, for connection to PC or industrial automation
    • GlossTools Data Analysis Software dedicated interface
    • RS232 interface available
  • Widest range of measurement geometries in Zehntner range
    • 20°, 60° and 85°
    • 20° Tappi and 75° Tappi
  • Support for Stray Light Compensation
  • Contact or contact free designs are available

Available Configurations

For coatings, plastics and general materials

1120.6: ZGM 1120 Glossmeter 60°

1120.26: ZGM 1120 Glossmeter 20° and 60°

1120.268: ZGM 1120 Glossmeter 20°, 60° and 85°

For Foils and Paper

1120.2T7T: ZGM 1120 Glossmeter 20° Tappi and 75° Tappi

Features

Transmit Data Directly to your Computer

The Zehntner ZGM 1120 opens the gateway to more efficient and productive quality control by the gloss measuring sensor transmitting the measuring data directly to the computer via USB-interface.

You will find the Zehntner ZGM 1120 useful for the various needs of production as well as the demanding requirements in the laboratory. This glossmeter is intelligent and user-friendly from the very beginning: starting at the calibration, continuing through the whole measuring procedure and concluding with data analysis.

ZOL 1150

The Zehntner ZOL 1150 Online-Glossmeter is a tailored gloss-measuring system for industrial areas for contactless online measurement of all gloss ranges from matt to high gloss up to 2'000GU.

Overview
  • Coatings, plastics and related materials. High gloss (20°), Medium gloss (60°), Low gloss (85°)
  • Coatings, plastics and related materials. High gloss (20°), Medium gloss (60°)
  • In-line production use
  • Up to 1‘000 readings per second with multi-angle measuring heads and automatic measuring distance correction
  • Measurements on the lower and/or upper side of the continuous material
  • Automatic in-situ calibration
  • Ethernet interface
  • Analog output of the measuring value, outputs for out of range measurements and changing reels (i.e. to signal lamps)
  • Signal input for calibration and moving measuring head

Why the GS9000 matters for SUE businesses

  • Increase area covered per field day
  • Reduce the number of manually positioned survey lines
  • Improve coverage in congested corridors
  • Review coverage before leaving site
  • Produce higher-value mapped deliverables
  • Combine GPR and GNSS in one workflow
  • Retain raw data for later reinterpretation
  • Expand from locating into mapping and subsurface modelling

Book a SUE Workflow Demonstration

High-resolution multichannel GPR for structures, bridges and pavements

The GX1 transforms the GS9000 into a high-resolution structural assessment system for concrete slabs, bridge decks and pavements. Its dense, dual-polarisation array captures detailed 3D data across wide areas, supporting reinforcement and cover mapping, moisture and deterioration assessment, and analysis of asphalt and pavement layers. Live visualisation helps confirm survey coverage on site, while post-processing tools produce clear, report-ready condition maps.

  • Bridge-deck reinforcement and condition mapping
  • Concrete-cover mapping
  • Reinforcement layout and spacing
  • Moisture-related and deterioration mapping
  • Asphalt and pavement-layer thickness
  • Road and runway investigations
  • Detection of embedded features
  • Large-area concrete-slab investigations
  • Comparative and repeat surveys

The structural assessment workflow

1. Define the inspection area

Import the structure, bridge, pavement or survey background.

2. Collect closely spaced profiles

Capture 35 longitudinal and 15 cross-polarised channels with dense spacing.

3. Review coverage in the field

Use live radargrams and time slices to confirm that the required area has been captured.

4. Process the dataset

Apply velocity, gain, background removal, migration, filtering and topographic correction as appropriate.

5. Generate diagnostic maps

Create depth slices, reinforcement maps, layer information or application-specific condition maps.

6. Integrate with the engineering assessment

Export figures, mapped anomalies and raw data for inclusion in the engineer’s final interpretation and report.

Structural outputs and engineering value

Field information

  • Live radargrams
  • Coverage map
  • Time-slice preview
  • Field annotations

Processed Diagnostic Information

  • 2D and 3D views
  • Depth slices
  • Reinforcement patterns
  • Cover trends
  • Layer-thickness information
  • Comparative amplitude or condition maps

Engineering deliverables

  • Georeferenced maps
  • Marked investigation areas
  • Selected radar profiles
  • Exported images and datasets
  • CAD/GIS overlays
  • Report-ready figures

View some of these features at work below, and our case study if you'd like to see more of what the GS9000 can do.

When to use the GS9000 rather than a handheld GPR

Use a handheld or single-channel GPR when…

Use the GS9000 when…

  • The inspection area is small
  • You need local marking before drilling
  • Rapid spot checks are sufficient
  • Manoeuvrability is the main priority
  • The output is primarily site marking
  • Large areas must be covered
  • A completely mapped dataset is required
  • Large datasets are required
  • Productivity and spatial continuity are priorities
  • The output must support reporting or engineering interpretation

Book a Structural Assessment Demonstration

One GS9000 platform

  • Onboard instantaneously mapped results
  • Interchangeable array modules
  • Foldable carbon-fibre cart
  • Rear-wheel encoders
  • Hot-swappable power banks
  • Wireless iPad operation
  • IP65 protection
  • Integrated GNSS
  • Approximately 1–5 cm real-time GNSS accuracy where suitable corrections and conditions are available
  • Free-path and structured survey methodologies

Field software, post-processing and Workspace

Field App

Workspace

GPR Insights post-processing

  • Live radargrams and time slices
  • Satellite, GNSS and CAD overlays
  • Tags, photographs, voice markers and linework
  • Field calibration and processing
  • Immediate review of survey coverage
  • Synchronise projects
  • Store and share data
  • Collaborate remotely
  • Run connected GNSS and conversion services
  • Share projects through a URL
  • Merge multiple field projects
  • Advanced 2D and 3D visualisation
  • Filtering and migration
  • Topographic correction
  • Application-specific mapping tools

Configurations and what is included

GS9000 cart with:

  • GX1 and/or GX2 array option
  • MA8000 GNSS receiver and correction options
  • Latest version of GS App with live updates
  • Advanced GPR Insights processing software access
  • Cloud storage on Workspace
  • Batteries and chargers
  • Training
  • Commissioning
  • Kit with all required cables and tools

Why purchase from PCTE

  • Australian and New Zealand application advice
  • Local demonstrations
  • Configuration selection
  • On-site commissioning
  • Operator training
  • Data interpretation and workflow training
  • Local technical support
  • Service and repair coordination
  • Assistance with GNSS, coordinate systems and deliverables
  • Access to related GPR and structural NDT equipment

Model
ZGM 1130
PC Software

Screening Eagle Workspace

Display

2.4” touchscreen

Memory

1 million measurements

Measurement Modes

Sensor adaption V(λ)

Measuring Geometries

1-angle: 60°

2-angle: 20°, 60°

3-angle: 20°, 60°, 85°

Measuring Range

0 - 2'000 GU

Measuring Accuracy

0 - 199.9 GU: ± 0.1 %

200 - 2'000 GU: ± 0.2 %

Weight

420 g (0.93 lbs)

Battery

Lithium Ion

Model
ZGM 1120
PC Software

Screening Eagle Workspace

Display

Connects to computer

Memory

Connects to computer

Measurement Modes

Single, Continous

Measuring Geometries

1-angle: 60°

2-angle: 20°, 60°

3-angle: 20°, 60°, 85°

Measuring Range

0 - 2'000 GU

Measuring Accuracy

0 - 199.9 GU: ± 0.1 %

200 - 2‘000 GU: ± 0.1 %

Weight

60°: 90 g (0.198 lbs)

20°/60°: 96 g (0.212 lbs)

20°/60°/85°: 120 g (0.265 lbs)

Battery

USB-powered

Model
ZOL 1150
Geometries

20°, 60°, 85° (depending on the version)

Measuring Accuracy

0 - 199.9 GU: ≈0.2 GU, 0 - 1999 GU: ≈2 GU*

Measuring Area

20°: 22 mm x 20 mm (0.87” x 0.79”)

60°: 29 mm x 14 mm (1.14” x 0.55”)

85°: 114 mm x 11 mm (4.49” x 0.43”)

Interfaces

Ethernet

Analog Output

0-10 V, 0-20 mA or 4-20 mA

Light Source

LED

Power Supply

24 VDC, ±10%

Power Consumption

max. 18 W

Operating Temperature

-10°C to + 50°C (12 °F to 122 °F)

Measuring Distance to Material Measuring Position

20°/60°: 10 mm (0.39”)

85°: 2.7 mm (0.11”)

Dimensions Measuring Head

20°/60°: 339 mm x 142 mm x 243 mm

20°/60°: 13.35” x 5.59” x 9.57”

85°: 339 mm x 142 mm x 250 mm

85°: 13.35“ x 5.59“ x 9.84“

No Items Found
No items found.
No items found.
No items found.
No items found.
No items found.
